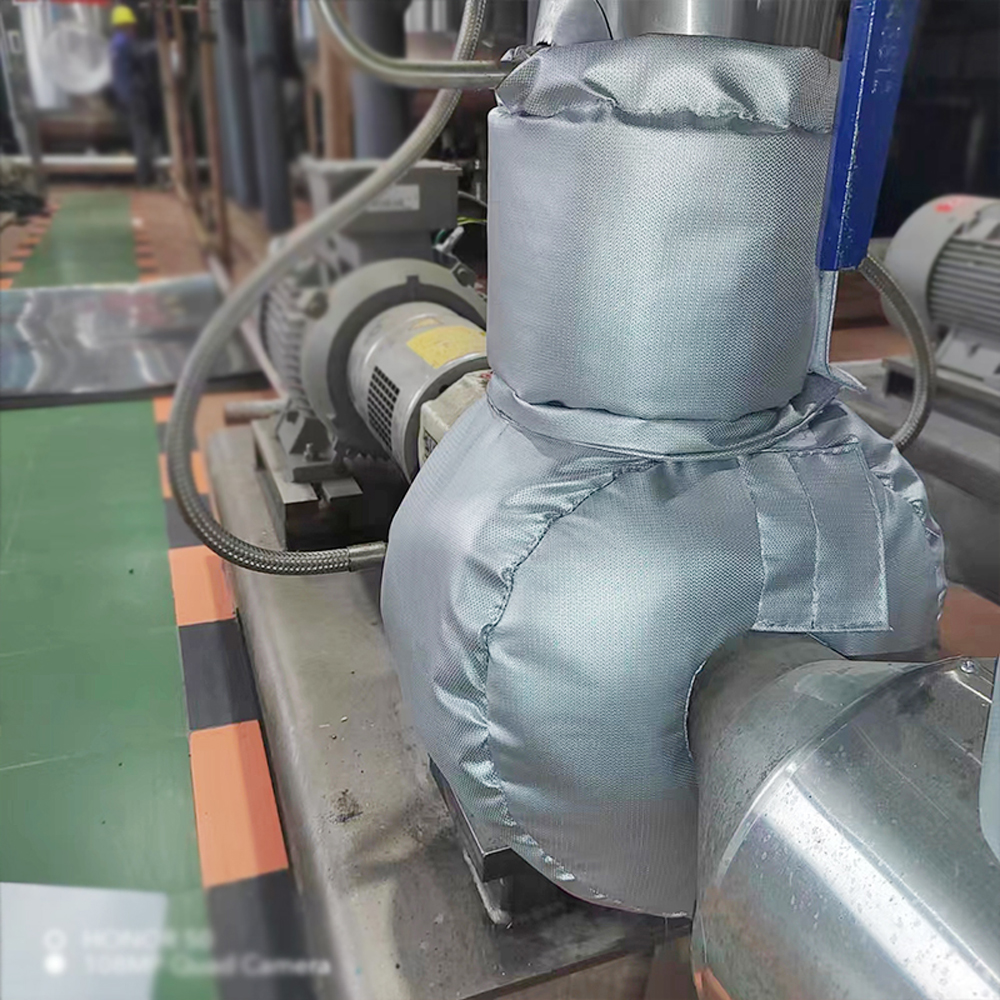

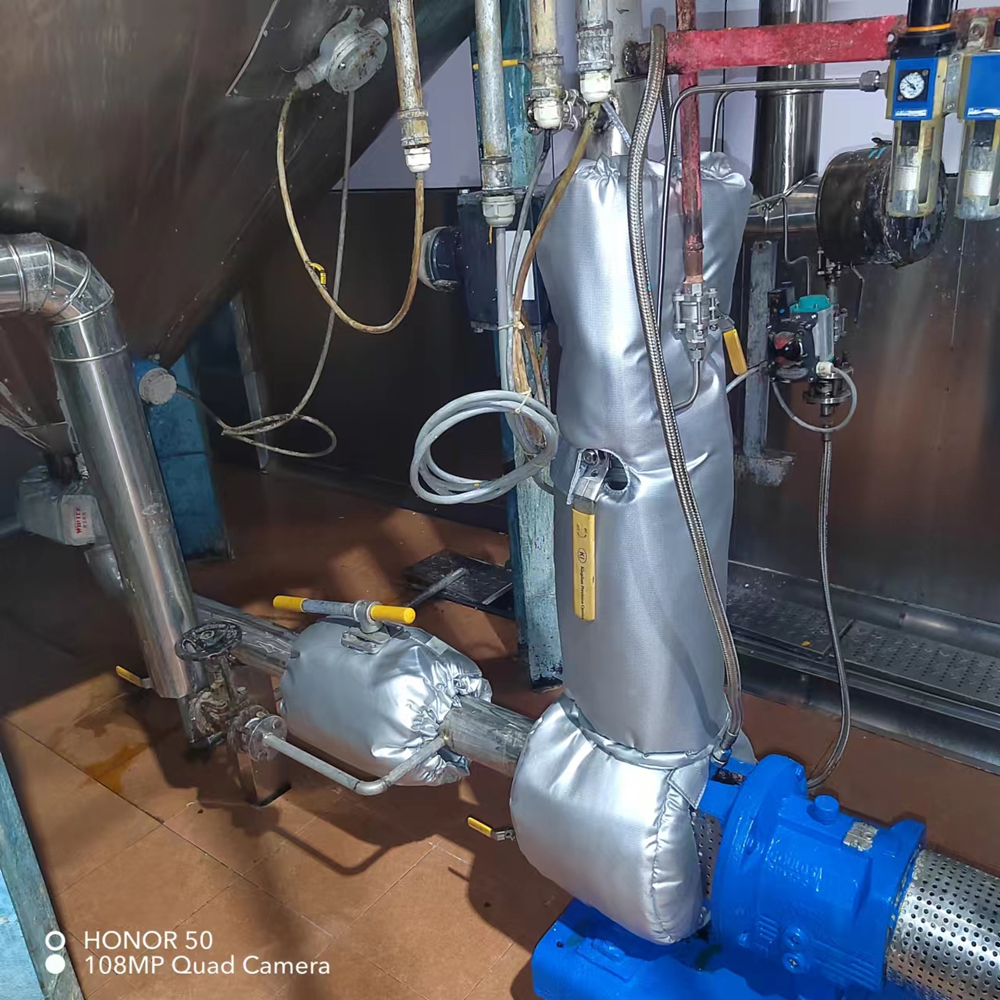

removable insulation valve covers

Basic Info.

Monitoring exterior temperature changes before and after retrofit

  Select some monitoring points for energy-saving thermal insulation transformation of thermal equipment and pipelines, and measure the exterior temperature of the monitoring points before and after the transformation. After completing the insulation and energy-saving transformation, the exterior temperature of the equipment fully complies with the relevant standards, and the thermal equipment and pipeline insulation and energy-saving effect has been significantly improved to achieve the insulation and energy-saving requirements.

Thermal insulation: It reduces the heat exchange between the valve and the external environment and prevents heat dissipation. For valves handling high-temperature media, it can effectively maintain the temperature of the media, reduce energy consumption, and improve the thermal efficiency of the system. For valves handling low-temperature media, it can prevent the valve surface from dew formation or freezing, ensuring the normal operation of the valve.

1. Energy conservation and consumption reduction: By reducing heat loss or absorption, it decreases the energy consumption required to maintain the temperature of the medium, achieving the goal of energy conservation. In industrial production, it helps to reduce production costs and improve economic benefits.

Product description:

Thermal insulation cover have three to six layers, liner is high silica glass fiber cloth, stainless steel braided cloth, ceramic fiber cloth, glass fiber cloth or high-SI aluminum cloth, and insulating layer is ceramic or glass fiber or aerogel blanket, and the protection layer is silicone coated glass fiber cloth, tef-lon cloth or stainless steel braided cloth, which is water, oil, acid and alkali proof. The thickness is 5-150mm, which could be customized, temperature resistance could be as high as 1080 ºC. Normal lifetime is more than 5 years. And the energy saving rate is 25% to 40%.
